Unidrum Lever Push-Pull And Pull-Only Hand Control

Unidrum Lever Push-Pull And Pull-Only Hand Control

【 Product Description 】

A control head designed primarily for hand throttle applications on commercial and industrial vehicles, and also suitable for many other uses. Compact and efficient for imparting light-to-medium pull-only or push-pull loads through flexible conduits and inner-members. Unidrum controls hold and operate up to 26lb push-pull or pull-only output loads. The lever position is adjustable in 60 degree increments to provide optimum operating range. Optional cable entry offers four mountings/directions of operation alternatives. Also available with a smaller handle for light duty applications or with a locking handle.

【 Material 】

• Zinc Based Die-Cast Body, Drum and Lever

• Internal Long Life Nylon Bearings

• Optional Black Powder Coat Paint Finish

【 Applications 】

• Medium to light duty throttle compactors

• Valve dump control jackhammers

• Hydraulic valve control concrete cutters

• Backhoe throttle

【 Features 】

• Adjustable friction lock

• 5 to 1 mechanical advantage

• Adjustable mechanical stops

【 Function 】

• Power take-off

• Directional control

• Self-locking

• Control a push pull cable

【 Unidrum Lever Order Code 】

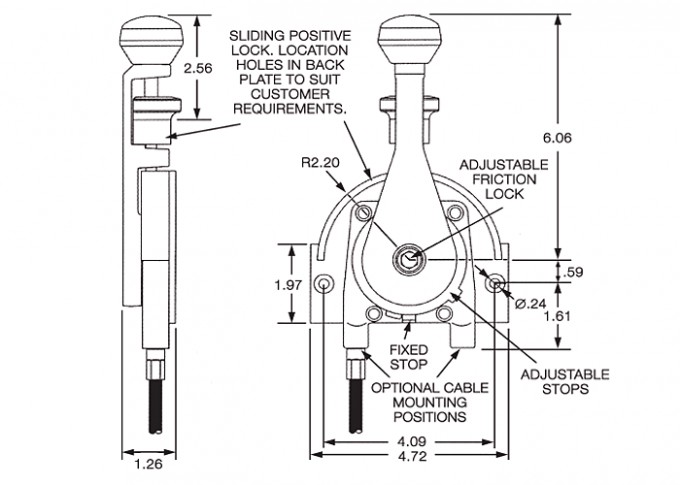

【 Unidrum Lever 】

• Hold and operate up to 26lb push-pull or pull-only output load. Mechanical advantage at knob is 5/1.

• Self-locking nut for operator adjustment of friction setting.

• Adjustable stop plates allow 10° (.2 linear output) incremental travel adjustment. 2of cable travel requires approximately 90° lever travel.

• Optional cable entry.

• Rugged diecast zinc alloy material.

【 Real Pictures 】

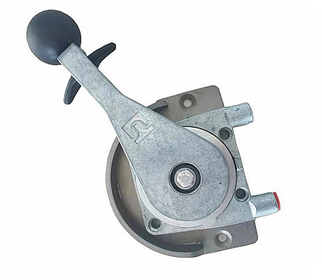

Unidrum Hand Control Lever

Unidrum Lever Push-Pull And Pull-Only Hand Control Images
